fiber optic pigtail-Shenzhen Hiphotonics Optical Communication Co., Ltd.

Products Fiber Optic Patch Cord Patch Cord/Pigtail

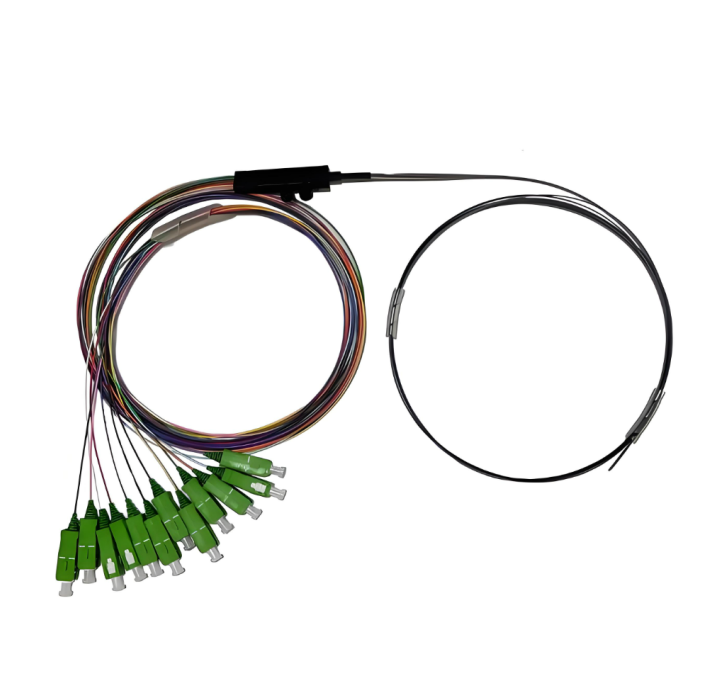

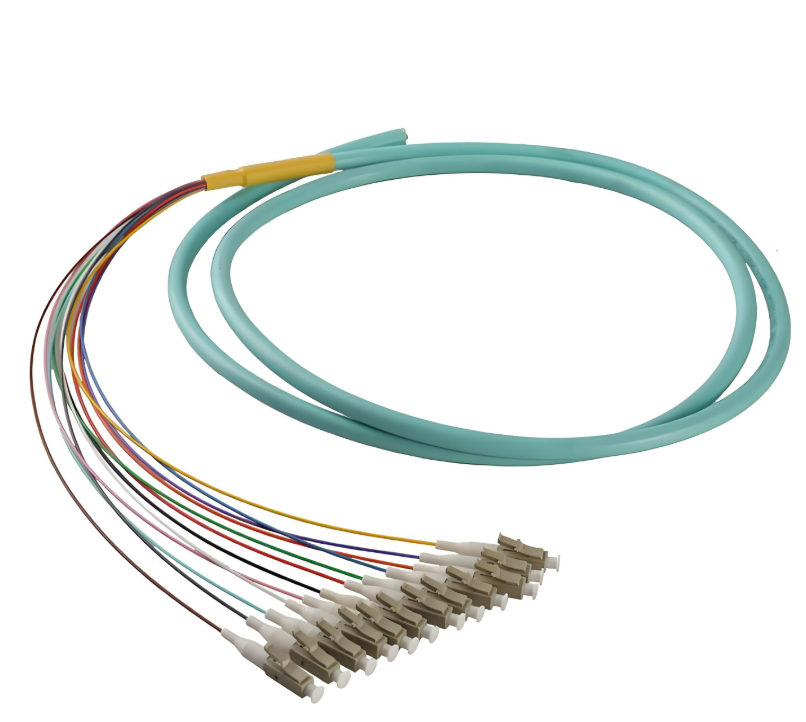

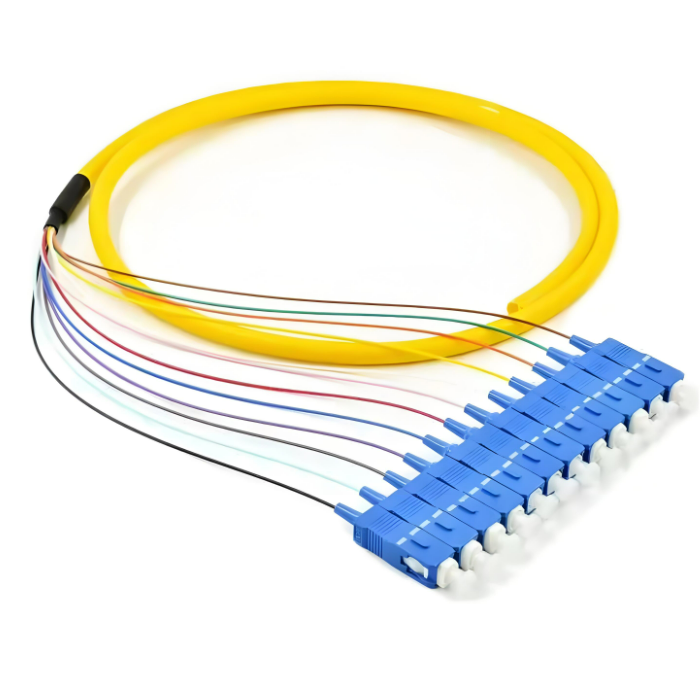

fiber optic pigtail

Hiphotonics has a wide choice of fiber optic pigtails in different models, materials, and types of connectors. We offer precision-assembled pigtails to address a wide range of application needs, including single-mode and multimode, zirconia ferrules and metal sleeves, and SC, LC, FC, ST, or MU connections

0755-27662758

sales@hiphotonics.com

Send Inquiry
Download

Hiphotonics has a wide range of fiber optic pigtails that can satisfy the needs of modern optical communication networks. We make sure that our pigtails are perfectly put together and tested 100% of the time. They come in many different configurations to make sure that they work well and connect with a wide range of devices.

Key Features：

Connector Types: SC, LC, FC, ST, MU (UPC/APC polish options)

Fiber Types: Single-mode (OS1/OS2), Multimode (OM1/OM2/OM3/OM4/OM5)

Ferrule Material: High-quality zirconia ceramic ferrules for stable optical performance

Sleeve Options: Ceramic and metal sleeves available depending on application

Fiber Counts: Available in 1, 4, 6, 8, 12 cores or custom configurations

Cable Jackets: PVC, LSZH, or flame-retardant options in standard or customized colors

Length Options: Standard lengths or tailor-made to customer requirements

Outer Diameter: Available in 0.9mm, 2.0mm, 3.0mm, or as specified

Applications：

Optical Distribution Frames (ODFs)

Fiber optic patch panels and enclosures
