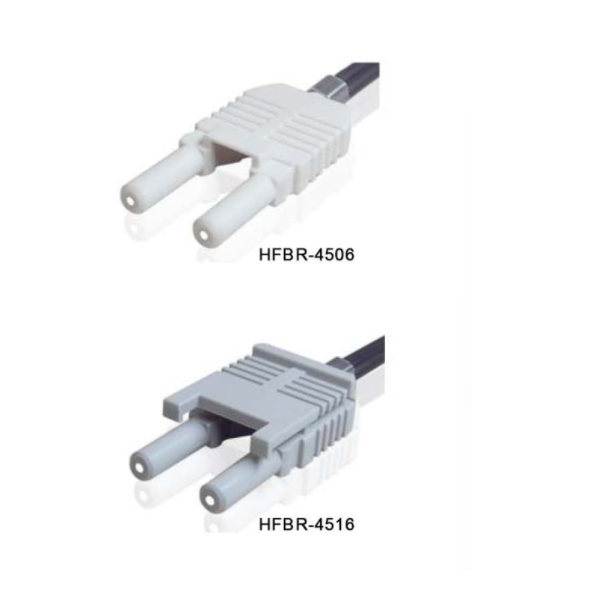

POF Patchcord-HFBR-4506

Applications: - Industrial data links for factory automation and plant control - Intra-system links, Board-to-board, Rack-to-rack - Telecommunications switching systems - Computer-to-peripheral data links, PC bus extension - Proprietary LANs - Digitized Video - Medical instruments - Reduction of lightning and voltage transient susceptibility - High voltage isolation Features: - Compatible with Agilent Versatile Link Family of Connectors and Fiber Optic Components - 1mm Diameter Plastic Optical Fiber (POF) in Two Grades: Low Cost Standard POF with 0.22dB/m Typical Attenuation, or High Performance Extra Low Loss POF with 0.19dB/m Typical Attenuation

0755-27662758

sales@hiphotonics.com

Send Inquiry
Download

Specifications：
Parameter	Value
Insertion Loss	≤1.0dB
Interchangeability	≤0.5dB
Typical Attenuation	0.20dB/m (Wavelength：650nm)
Refractive Index	Step Index
Minimum Bend Radius	25mm
Angle of incidence	60°
Tensile Strength	≤0. 5dB (0～80N)
Vibration	≤0. 5dB 5～50HZ, 1.5mm Amplitude)
Numeral Aperture	0.50
Jacket Color	Black
Fiber Diameter	1mm
Outside Diameter	2.2mm
Fiber Material	PMMA
Operating Temperature	-40℃～+85℃
Storage Temperature	-40℃～+85℃
