outdoor cable Steel tape layer loose tube-Shenzhen Hiphotonics Optical Communication Co., Ltd.

Products Fiber Optic Cables Outdoor Fiber Optic Cable

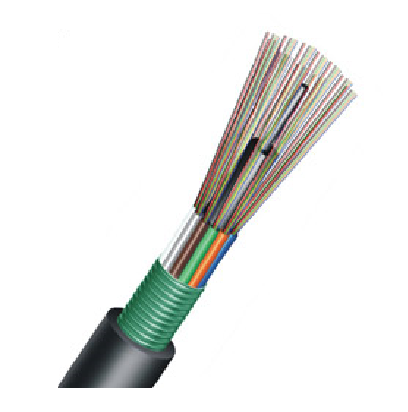

outdoor cable Steel tape layer loose tube

0755-27662758

sales@hiphotonics.com

Send Inquiry
Download

The Hiphotonics Outdoor Optical Fibre Cable Steel Tape Layer Loose Tube GYTS is made for outdoor use and is great for laying pipelines in the air. The steel wire strength filler and the protect tube fibre steel tape armouring make this cable stronger and more durable. The cable works well for both long-distance and local area network connectivity and doesn't get wet easily.

The Outdoor Optical Fibre Cable Steel Tape Layer Loose Tube GYTS has a great quality that makes it very resistant to ultraviolet radiation. This feature makes it perfect for outdoor use, where sunlight and other environmental variables might cause the cable to age and break down. The cable is made to last in bad weather and can handle being around corrosive materials.

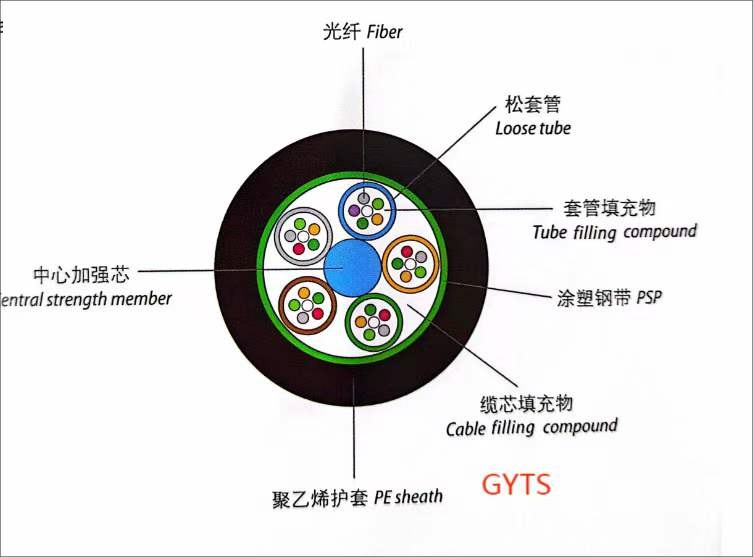

The Outdoor Optical Fibre Cable Steel Tape Layer Loose Tube GYTS is built with high-quality materials that make it work better and last longer. There is a centre loose tube in the cable that holds several optical fibres. A coating that keeps water out protects these fibres. The steel tape armouring on the protect tube fibre offers an extra layer of protection to the cable and makes sure it can handle all kinds of outside pressure.

cable count Core	out sheath （MM)	Weight （KG)	Minimum allowable		Minimum allowable		Min bending		Suitable （℃）
cable count Core	out sheath （MM)	Weight （KG)	short term	long term	short term	long term	short term	long term	Suitable （℃）
24	10.5	105.00	1500	600	1000	300	20D	10D	-40+60
36	10.5	105.00	1500	600	1000	300	20D	10D	-40+60
42	10.5	105.00	1500	600	1000	300	20D	10D	-40+60
48	12.0	150.00	1500	600	1000	300	20D	10D	-40+60
60	12.0	150.00	1500	600	1000	300	20D	10D	-40+60
72	12.0	150.00	1500	600	1000	300	20D	10D	-40+60

Moreover, this cable is engineered for straightforward installation and maintenance. It is compatible with several installation methods, including aerial, duct, and direct burying. The cable features a low smoke, zero halogen coating that offers enhanced protection against fire threats. This renders it optimal for application in regions where fire safety is of paramount importance.

The outside Optical Fibre Cable Steel Tape Layer Loose Tube GYTS is an exemplary option for outside distribution and network connectivity. Its exceptional performance, longevity, and resilience to environmental variables render it the ideal cable for both long-distance and local area applications.

Hiphotonics provides complimentary samples of our goods, allowing clients to evaluate their quality and appropriateness for their projects. Our customer care team is readily available to assist clients in choosing the appropriate optical fibre cable for their requirements and specifications. We recognise the need of adhering to project deadlines, which is why we guarantee the delivery of our products within the stipulated timeframes, regardless of order size.
