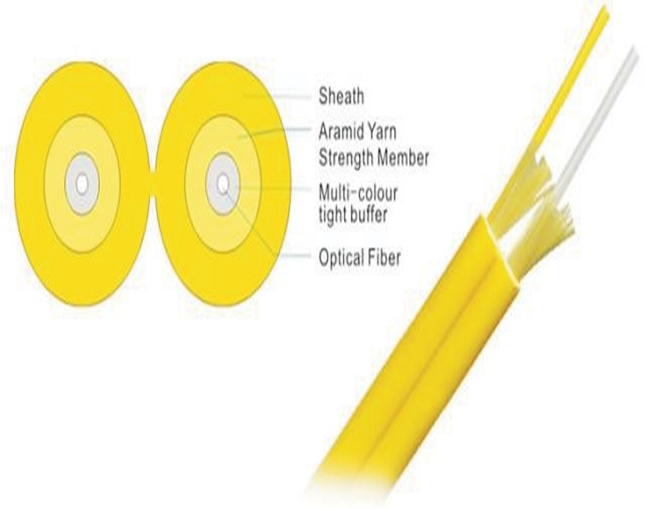

The duplex zip cord has a high-strength aramid yarn strength element that makes sure the optical fibers can handle a lot of stress and stay stable for a long time. This strength part is very strong against outside forces and keeps the optical fibers safe from damage and stress from machines.
|
Fiber Outside T.B Cable Min. Bend Radius Tensile Load Crush Load Count Diameter Diameter Weight Loaded Installed Short Term Long Term Short Term Long Term |
||||||||||||||||||
|
mm |
mm |
kg/km |
mm |
mm |
N |
N |
N |
N |
||||||||||
|
1 |
1.6 |
0.6 |
3.2 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
1 |
1.8 |
0.9 |
3.5 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
1 |
2.0 |
0.9 |
3.9 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
1 |
2.4 |
0.9 |
4.5 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
1 |
2.8 |
0.9 |
5.2 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
1 |
3.0 |
0.9 |
6.5 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
2 |
1.6x2 |
0.9 |
6.5 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
2 |
1.8x2 |
0.9 |
7.0 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
2 |
2.0x2 |
0.9 |
8.0 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
2 |
2.4x2 |
0.9 |
9.4 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
2 |
2.8x2 |
0.9 |
12.5 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
2 |
3.0x2 |
0.9 |
14.0 |
20D |
10D |
300 |
160 |
500 |
100 |
|||||||||
|
2 |
3.2x5.2 |
0.9 |
18.0 |
20D |
10D |
800 |
400 |
1000 |
500 |
|||||||||
|
2 |
7.2x4.2 |
0.9 |
31.0 |
20D |
10D |
1000 |
500 |
1200 |
1000 |
|||||||||
The duplex zip cord is lightweight and easy to handle due to its small outer diameter. Because of this quality, the cable is perfect for tight quarters where bigger ones won't fit. The cable is also suitable for usage in hot situations due to its flame-retardant characteristics.
Duplex zip cable is an excellent medium for long-distance optical signal transmission due to its low attenuation. Because of its physical softness, the cable is both flexible and easy to bend without drastically reducing signal quality.
This cable is perfect for connections between buildings because of its tight buffered construction, which allows for direct splicing between cables. It has further uses as a pliable indoor wire that runs along ceilings, walls, between layers, and conduits.

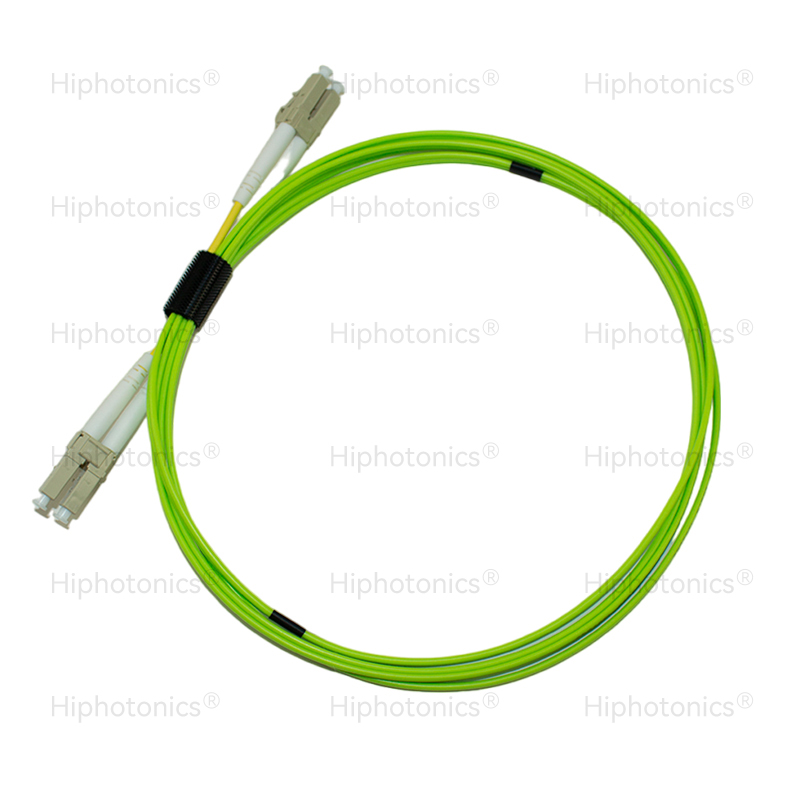

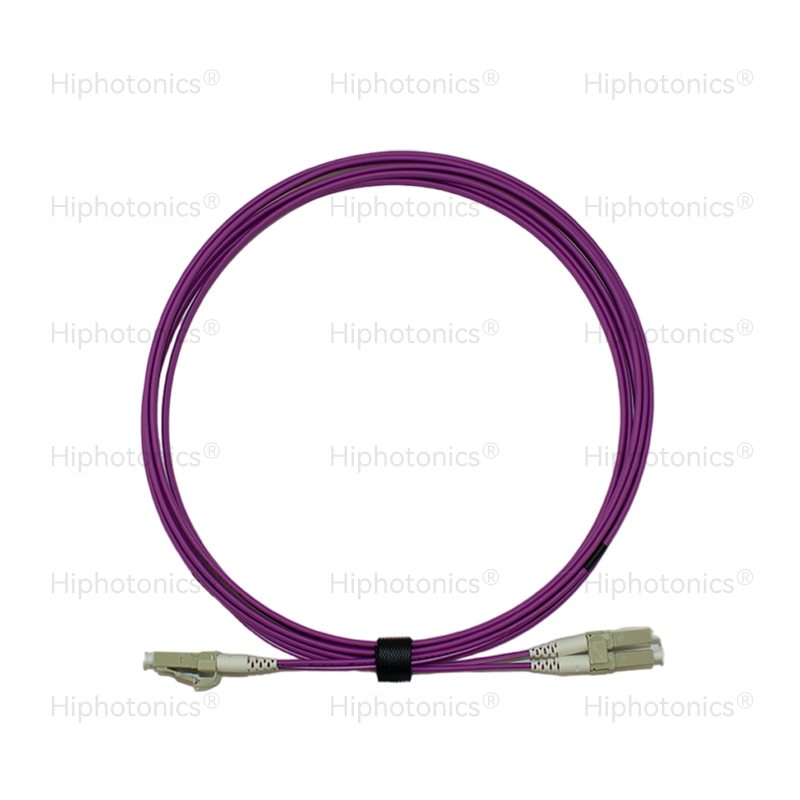

Pigtails, moveable connectors, and patch cords for communication equipment are just a few of the many uses for duplex zip cord. Data centers, telecoms, and other fields that rely on dependable and efficient data transfer can all benefit from this cable's versatility.
For indoor applications that demand efficient and dependable transmission of optical fibers, the duplex zip cord is a great option. It is an efficient cable that is easy to handle and install due to its small diameter, low attenuation, and high strength. As a result, it is perfect for usage in numerous contexts.
