Features:
- Wide Attenuation Range: Inline fiber optic attenuators come with a wide range of attenuation options, ranging from 1dB to 30dB to provide signal loss according to the requirement.
- Low Original Loss: These attenuators have low initial insertion loss and are suitable for applications where signal attenuation is crucial.
- Compact Size: They are small in size and can easily be integrated into fiber optic systems without taking much space.
- High Precision: Inline fiber optic attenuators provide high precision attenuation, which is essential to maintain signal quality.
- Wide Operating Temperature Range: They operate in an extensive temperature range from -40°C to +85°C.
|

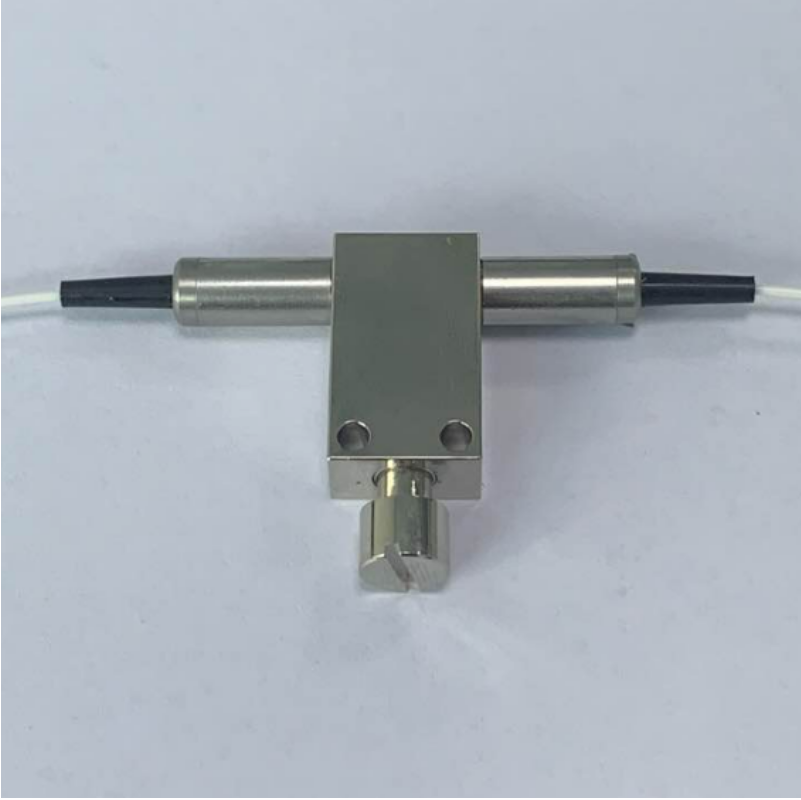

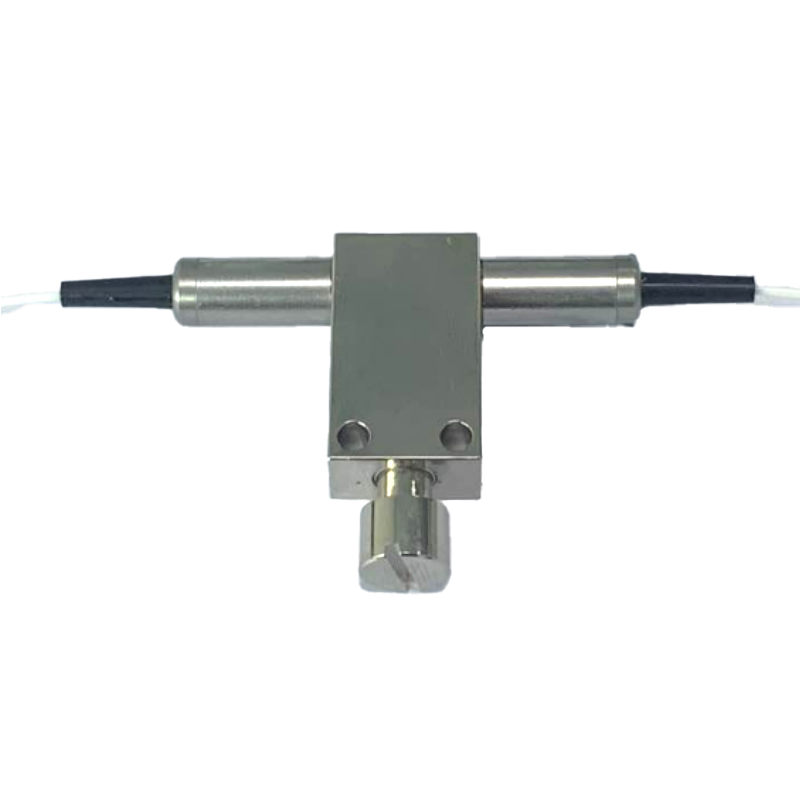

CVOA Series |
1310 or 1550 |
1300~1610 |
850、1300 |
1053、1064… |
Unit |
|
Band with |
± 40 |
± 40 |
± 15 |
nm |
|
|
Attenuation range |
0.6 ~ 60 |
1.0 ~ 40 |
0.8 ~ 60 |
0.6 ~ 60 |
dB |
|
Original loss |
≤0.6 |
≤1.0 |
≤0.6 |
≤1.0 |
dB |
|
Return loss |
≥50 |
≥40 |
≥30 |
≥30 |
dB |
|
Fiber |
SM28 Fiber |
50(62.5)/125 |
Special SM fiber |
||
|
Precision |
0.02 |
dB |
|||
|
PDL |
≤0.10 |
dB |
|||
|
Operating temperature |
-40 ~ +70 |
℃ |
|||
|
Storage temperature |
-40 ~ +85 |
℃ |
|||
1. Optical Communication Systems: In optical communication systems, inline fiber optic attenuators are used to adjust the power level of optical signals, which helps to minimize the distortion caused by high power signals. It also helps to prevent equipment damage due to overloading.
2. Testing Instruments: Inline fiber optic attenuators are widely used in testing instruments to simulate attenuation in fiber optic networks and measure the network's response accordingly.
3. Fiber Sensor Systems: These attenuators are used in fiber sensor systems to control the power of the optical signals entering the sensor, allowing sensors to operate at optimum light levels, which is essential to obtain accurate sensor readings.
4. Optics Laboratory: Inline fiber optic attenuators are used in optics laboratory experiments to investigate the properties of light and optical fiber systems.
Inline fiber optic attenuators from Hiphotonics are very important parts of optical communication systems, fiber sensor systems, testing tools, and lab research. They are a popular choice for many uses since they are small, have low initial loss, and good attenuation precision. We make high-quality inline fiber optic attenuators at Photonics Company. These products have been tested for reliability. We can make things quickly, transport them quickly, and give you free samples to evaluate.
