Armored multi core double sheath optic cable

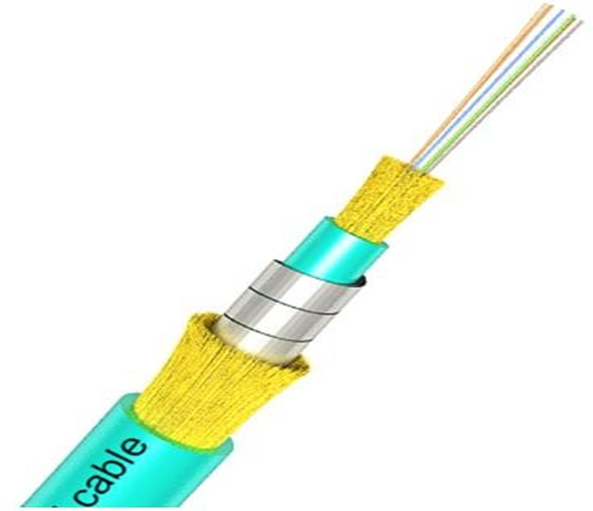

The Armored Multi-core Double Sheath Optic Cable from Hiphotonics is a new type of high-performance, compact armored fiber optic system. This small design, which has an outer diameter of about 5.0mm, makes it very flexible, quick to install, and reliable in both indoor and outdoor settings. This cable is very durable and can send data even under tough conditions. It can be used in data centers, telecom facilities, optical distribution frames, and for backbone and access network applications.

0755-27662758

sales@hiphotonics.com

The double-sheath armored structure gives better mechanical protection while yet being flexible. The sophisticated armor layer makes the cable very strong against outside pressures including crushing, bending, and tensile stress. This makes it perfect for tough conditions where standard fiber optic cables might get damaged. The outer jacket is flame-retardant and meets high international safety standards. This means that it will defend against fire threats and keep operations safe in sensitive places like data centers and telecom facilities.
二、 光缆参数(Cable Parameters)
项目
(Item)
单位
(Unit)
要求
(Spec)
光纤芯数
Number of optical fibers
/ 4F 6F 8F 12F
光纤类型
Fiber Type
/ G657A1
裸光纤
Bare fiber
尺寸Size um Ø245±5
颜色Color 4F 蓝Blue、橙Orange、绿Green、棕Brown
6F 蓝Blue、橙Orange、绿Green、棕Brown、灰Gray、白White
8F 蓝Blue、橙Orange、绿Green、棕Brown、灰Gray、白White、红Red、黑Black
12F 蓝Blue、橙Orange、绿Green、棕Brown、灰Gray、白White、红Red、黑Black、黄Yellow、紫Violet、粉Pink、青绿Aqua
内护套
Inner Jacket
尺寸Size mm Ø1.5±0.1
颜色Color / 黄色Yellow
材质Material / LSZH
加强件 Strength member 进口芳纶Aramid yarn
螺旋铠管
Armored tube
尺寸Size mm OD: Ø2.8±0.2
材质Material / SUS 204
外护套
Outer Jacket
尺寸Size mm Φ5.0±0.2
颜色Color / 黄色Yellow
材质Material / LSZH (OFNP)
最小弯曲半径
Min bend radius
静态 static state mm 10 D
动态 trends mm 20 D
衰减
Attenuation
1310nm dB ≤0.4
1550nm dB ≤0.3
拉伸
Pulling
短期Short-term N 400
长期Long-term N 200
压扁力Flattening force 短期Short-term N /10cm 3000
长期Long-term N /10cm 1000
工作温度Operationtemperature -40~+85
Flame retardant requirements / IEC60332-3-24

One of the best things about Hiphotonics's Armored Multi-core Double Sheath Optic Cable is how well it can be made. Hiphotonics can make and ship a lot of unique cables in just 3 to 5 business days thanks to its 12 dedicated armored fiber optic production lines. This makes sure that urgent projects are finished quickly while still meeting the highest standards of quality and performance.

The cable can send a lot of data at once and meets or exceeds the strict criteria of international telecom standards, particularly those set by the European Union. The steady optical properties make sure that there is very little signal loss and that data stays safe over extended distances. This makes it possible for applications that need fast, reliable connections.
Today, telecom companies, data centers, government organizations, and infrastructure projects in many high-standard international markets use Hiphotonics's Armored Multi-core Double Sheath Optic Cable. It is the best choice for modern optical communication networks that need both performance and durability because it is small, strong, flexible, and can be made quickly.
Hiphotonics is still dedicated to providing cutting-edge fiber optic solutions that match the changing needs of today's high-speed, high-capacity communication networks. The company has a long history of working on worldwide telecom projects.
